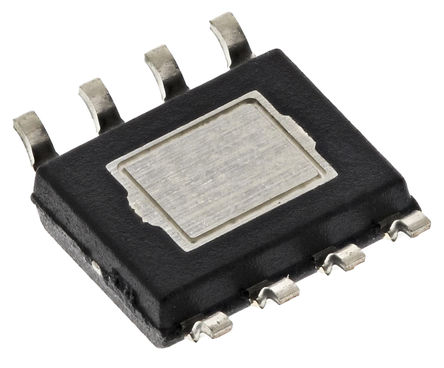

Image is for your reference only,please check specifications for details

OPA2211AIDDA - TI
Manufacturer:
TI
ManyChip's Part#:
MC8976772
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Dual, 2 Amplifier, 45MHz, 27V/µs, 4.5V to 36V, HSOP, 8Pins
Stock Locations:
Availability:
20 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA2211AIDDA is a low power precision Operational Amplifier achieves very low 1.1nV/√Hz noise density with a supply current of only 3.6mA. This amplifier offers rail-to-rail output swing, which maximizes dynamic range. The extremely low voltage and low current noise, high speed and wide output swing of the op-amp made an excellent choice as a loop filter amplifier in PLL applications. In precision data acquisition applications, the OPA211 series of the op-amp provides 700ns settling time to 16-bit accuracy throughout 10V output swings. This AC performance, combined with only 125µV of offset and 0.35µV/°C of drift over-temperature, makes the op-amp ideal for driving high-precision 16-bit analogue-to-digital converters (ADCs) or buffering the output of high-resolution digital-to-analogue converters (DACs).
1.1nV/√Hz at 1kHz Low noise
Unity-gain stable
0.35µV/°C Typical offset voltage drift
Rail-to-rail output
700ns 16-bit settling
125µV Maximum offset voltage
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

OPA2211AIDDA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	30 mA
Supply Current	3.6 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	110 dB
Input Offset Drift	350 nV/K
Bandwidth	45 MHz
Slew Rate	27.0 V/μs
Gain Bandwidth Product	80 MHz
Thermal Shutdown	No
Input Offset Voltage	50 μV
Input Bias Current	60 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	80 MHz
Minimum CMRR Range	110 dB
Supply Voltage	4.5V ~ 36V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.55 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
