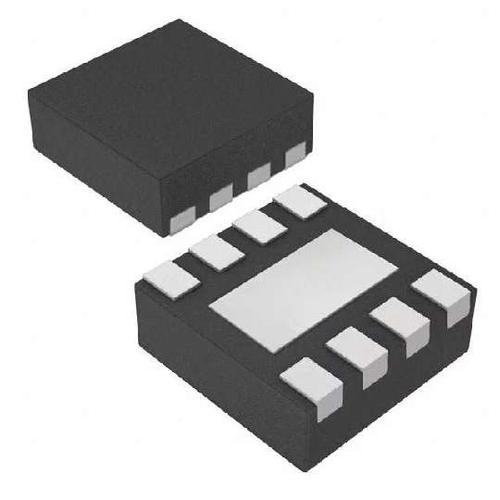

Image is for your reference only,please check specifications for details
- OPA2211AIDRGR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC83530519
-
Category:Operational Amplifier, OP Amp IC
-
Package:WSON-8
-
Datasheet:Datasheet 3D Model
-
Description:1.1nV/rtHz Noise, Low Power, Precision Operational Amplifier 8-SON -40℃ to 125℃
-
Stock Locations:
-
Availability:210 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 24.52
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The OPA211 series of precision operational amplifiers achieves very low 1.1nV/√Hz noise density
- with a supply current of only 3.6mA. This series also offers rail-to-rail output swing, which maximizes dynamic range. The extremely low voltage and low current noise, high speed, and wide output swing of the OPA211 series make these devices an excellent choice as a loop filter amplifier in PLL applications.
- FEATURES
- • LOW VOLTAGE NOISE: 1.1nV/√Hz at 1kHz
- • INPUT VOLTAGE NOISE: 80nVPP(0.1Hz to 10Hz)
- • THD+N: –136dB (G = 1, f = 1kHz)
- • OFFSET VOLTAGE: 125µV (max)
- • OFFSET VOLTAGE DRIFT: 0.35µV/°C (typ)
- • LOW SUPPLY CURRENT: 3.6mA/Ch (typ)
- • UNITY-GAIN STABLE
- • GAIN BANDWIDTH PRODUCT: 80MHz (G = 100) 45MHz (G = 1)
- • SLEW RATE: 27V/µs
- • 16-BIT SETTLING: 700ns
- • WIDE SUPPLY RANGE: ±2.25V to ±18V, +4.5V to +36V
- • RAIL-TO-RAIL OUTPUT
- • OUTPUT CURRENT: 30mA
- • DFN-8 (3mm × 3mm), MSOP-8, AND SO-8
- APPLICATIONS
- • PLL LOOP FILTER
- • LOW-NOISE, LOW-POWER SIGNAL PROCESSING
- • 16-BIT ADC DRIVERS
- • DAC OUTPUT AMPLIFIERS
- • ACTIVE FILTERS
- • LOW-NOISE INSTRUMENTATION AMPS
- • ULTRASOUND AMPLIFIERS
- • PROFESSIONAL AUDIO PREAMPLIFIERS
- • LOW-NOISE FREQUENCY SYNTHESIZERS
- • INFRARED DETECTOR AMPLIFIERS
- • HYDROPHONE AMPLIFIERS
- • GEOPHONE AMPLIFIERS
- • MEDICAL
OPA2211AIDRGR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | WSON-8 |
| Output Current | 30 mA |
| Supply Current | 3.6 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 110 dB |
| Input Offset Drift | 350 nV/K |
| Slew Rate | 27.0 V/μs |
| Gain Bandwidth Product | 80 MHz |
| Thermal Shutdown | No |
| Input Offset Voltage | 50 µV |
| Input Bias Current | 60 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 80 MHz |
| Minimum CMRR Range | 110 dB |
| Supply Voltage | 4.5V ~ 36V |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.73 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
