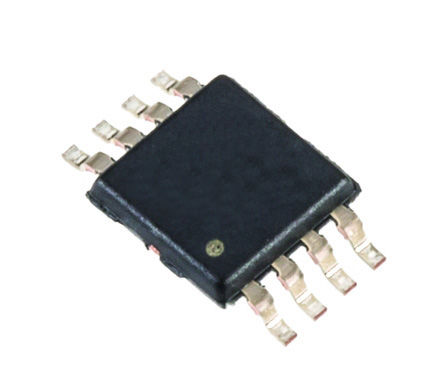

- OPA2314AIDGK - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC42779408
-
Category:Operational Amplifier, OP Amp IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Dual, 3MHz, Low-Power, Low-Noise, I/O, 1.8V CMOS Operational Amplifier 8-VSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:207 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.01
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OPA314 family of single-, dual-, and quad-channel operational amplifiers represents a new generation of low-power, general-purpose CMOS amplifiers. Rail-to-rail input and output swings, low quiescent current (150 µA typically at 5 VS) combined with a wide bandwidth of 3 MHz, and very low noise (14 nV/√Hz at 1 kHz) make this family very attractive for a variety of battery-powered applications that require a good balance between cost and performance. The low input bias current supports applications with MΩ source impedances.
- The robust design of the OPA314 devices provides ease-of-use to the circuit designer: unity-gain stability with capacitive loads of up to 300 pF, an integrated RF/EMI rejection filter, no phase reversal in overdrive conditions, and high electrostatic discharge (ESD) protection (4-kV HBM).
- These devices are optimized for low-voltage operation as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V), and are specified over the full extended temperature range of –40°C to 125°C.
- The OPA314 (single) is available in both SC70-5 and SOT23-5 packages. The OPA2314 (dual) is offered in SO-8, MSOP-8, and DFN-8 packages. The quad-channel OPA4314 is offered in a TSSOP-14 package.
OPA2314AIDGK Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Output Current | 20 mA |
| Supply Current | 150 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 66dB ~ 80dB |
| Input Offset Drift | 1.00 µV/K |
| Slew Rate | 1.50 V/μs |
| Gain Bandwidth Product | 3 MHz |
| Thermal Shutdown | No |
| Input Offset Voltage | 500 µV |
| Input Bias Current | 0.2 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 3 MHz |
| Minimum CMRR Range | 66 dB |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
