FDN342P - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC12867807
Category:
MOSFET, MOSFET Transistor
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:

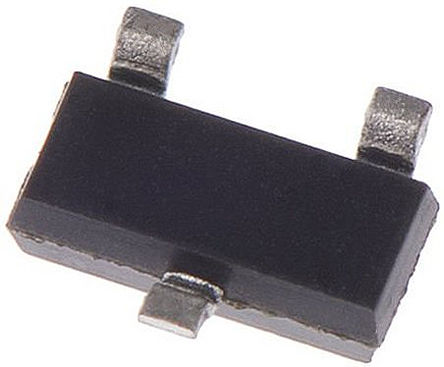

FAIRCHILD SEMICONDUCTOR FDN342P MOSFET Transistor, P Channel, 2A, -20V, 0.062Ω, -4.5V, 1.05V
Stock Locations:
Availability:
10,978 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.13

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDN342P is a 2.5V specified P-channel MOSFET produced using rugged gate version of Fairchild Semiconductor"s advanced PowerTrench® process. It has been optimized for load switch and battery protection applications requiring a wide range of gate drive voltage ratings (2.5 to 12V).
High performance Trench technology for extremely low RDS (ON)

Show

FDN342P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	-20.0 V
Current Rating	-2.00 A
Drain to Source Resistance (on) (Rds)	0.062 Ω
Polarity	P-Channel
Power Dissipation	500 mW
Threshold Voltage	1.05 V
Input Capacitance	635 pF
Gate Charge	6.30 nC
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Gate to Source)	±12.0 V
Continuous Drain Current (Ids)	2.00 A
Rise Time	8 ns
Input Capacitance (Ciss)	635pF @10V(Vds)
Input Power (Max)	460 mW
Fall Time	19 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500mW (Ta)
	Show
Size-Length	2.92 mm
Size-Width	1.4 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
