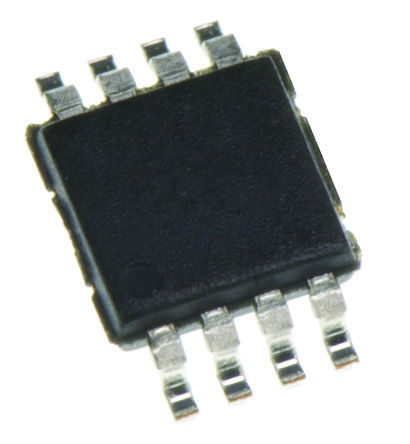

Image is for your reference only,please check specifications for details

OPA2333AIDGKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC4866750
Category:
Operational Amplifier, OP Amp IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
1.8V, 17μA, 2Channels, microPower, Precision, Zero Drift CMOS Op Amp 8-VSSOP -40℃ to 125℃
Stock Locations:
Availability:
139 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.89

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA2333AIDGKT is a 2-channel Micropower precision zero drift CMOS Operational Amplifier uses a proprietary auto-calibration technique to simultaneously provide very low offset voltage and near-zero drift over time and temperature. This miniature, high-precision, low quiescent current amplifier offers high-impedance inputs that has a common-mode range 100mV beyond the rails and rail-to-rail output that swings within 50mV of the rails. Single or dual supplies as low as +1.8V and up to +5.5V can be used. This device is optimized for low-voltage, single-supply operation. The OPA2333 family offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analogue-to-digital converters (ADCs) without degradation of differential linearity.
10µV Maximum low offset voltage
0.05µV/°C Maximum zero drift
17µA Quiescent current
Single-supply operation
Rail-to-rail input and output
Green product and no Sb/Br

Show

OPA2333AIDGKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	17 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	106 dB
Input Offset Drift	20.0 nV/K
Bandwidth	350 kHz
Slew Rate	160 mV/μs
Gain Bandwidth Product	350 kHz
Input Offset Voltage	2 µV
Input Bias Current	70 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.35 MHz
Minimum CMRR Range	106 dB
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.97 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
