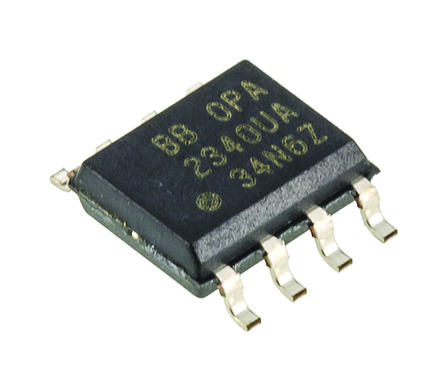

OPA2340UA - TI
Manufacturer:
TI
ManyChip's Part#:
MC2675125
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Dual, 2 Amplifier, 5.5MHz, 6V/µs, 2.7V to 5V, SOIC, 8Pins
Stock Locations:
Availability:
2,307 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.61

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA2340UA is a rail-to-rail CMOS Operational Amplifier, optimized for low-voltage, single-supply operation. Rail-to-rail input/output and high-speed operation make them ideal for driving sampling analogue-to-digital (A/D) converters. They are also well-suited for general purpose and audio applications as well as providing I/V conversion at the output of digital-to-analogue (D/A) converters. Single, dual and quad versions have identical specifications for design flexibility. It operates on a single supply as low as 2.5V with an input common-mode voltage range that extends 500mV below ground and 500mV above the positive supply. Output voltage swing is to within 1mV of the supply rails with a 100k load. They offer excellent dynamic response (BW = 5.5MHz, SR = 6V/µs), yet quiescent current is only 750µA. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.
Rail-to-rail input
Rail-to-rail output (within 1mV)
5.5MHz Wide bandwidth
6V/µs High slew rate
0.0007% (f = 1kHz) Low THD + N
750µA Low quiescent current per channel
Green product and no Sb/Br
IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

OPA2340UA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.00 V
Operating Voltage	2.5V ~ 5.5V
Supply Current	750 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	70 dB
Input Offset Drift	2.50 µV/K
Bandwidth	5.5 MHz
Slew Rate	6.00 V/μs
Gain Bandwidth Product	5.5 MHz
Input Offset Voltage	150 µV
Input Bias Current	0.2 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	5.5 MHz
Minimum CMRR Range	70 dB
Supply Voltage	2.7V ~ 5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
