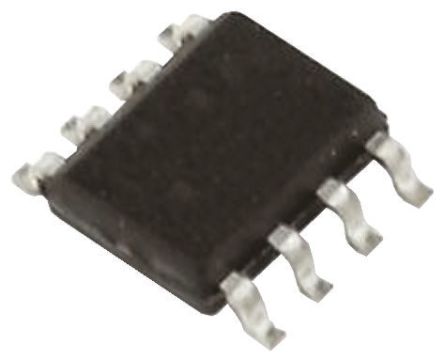

Image is for your reference only,please check specifications for details

OPA2378AIDCNT - TI
Manufacturer:
TI
ManyChip's Part#:
MC39315117
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA2378AIDCNT Operational Amplifier, Dual, 900kHz, 2 Amplifier, 0.4V/s, 2.2V to 5.5V, SOT-23, 8Pins
Stock Locations:
Availability:
323 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.8

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA2378AIDCNT is a low-noise precision Operational Amplifier with rail-to-rail input and output. It represents a new generation of zero-drift, MicroPower operational amplifier that uses a proprietary auto-calibration technique to provide minimal input offset voltage (20µV) and offset voltage drift (0.1µV/°C). The combination of low input voltage noise, high gain bandwidth (900kHz) and low power (150µA maximum) enable these devices to achieve optimum performance for low-power precision applications. In addition, the excellent PSRR performance, coupled with a wide input supply range of 2.2 to 5.5V and rail-to-rail input and output, makes it an outstanding choice for single-supply applications that run directly from batteries without regulation.
EMI filtering
125µA Quiescent current
112dB Typical CMRR
Green product and no Sb/Br

Show

OPA2378AIDCNT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOT-23-8
Supply Voltage (DC)	2.20V (min)
Supply Current	125 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	94 dB
Input Offset Drift	250 nV/K
Bandwidth	900 kHz
Slew Rate	400 mV/μs
Gain Bandwidth Product	900 kHz
Thermal Shutdown	No
Input Offset Voltage	20 µV
Input Bias Current	150 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.9 MHz
Minimum CMRR Range	94 dB
Supply Voltage	2.2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.2 V
	Show
Size-Length	3 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
