Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

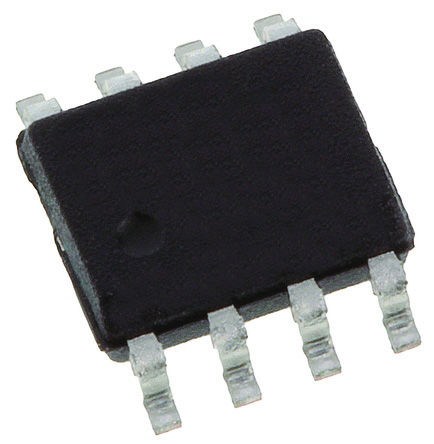

Case/Package | SOIC-8 |
Supply Current | 760 µA |
Number of Circuits | 1 Circuit |
Number of Channels | 1 Channel |
Number of Positions | 8 Position |
Common Mode Rejection Ratio | 76 dB |
Input Offset Drift | 320 nV/K |
Bandwidth | 5.5 MHz |
Slew Rate | 2.00 V/μs |
Gain Bandwidth Product | 5.5 MHz |
Input Offset Voltage | 5 µV |
Input Bias Current | 0.2 pA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Gain Bandwidth | 5.5 MHz |
Minimum CMRR Range | 76 dB |
Supply Voltage | 2.2V ~ 5.5V |
Supply Voltage (Max) | 5.5 V |
Supply Voltage (Min) | 2.2 V |
Show | |
Size-Length | 5 mm |
Size-Width | 3.91 mm |
Size-Height | 1.5 mm |
Operating Temperature | -40℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
