Description
- DESCRIPTION
- The OPA380 family of transimpedance amplifiers provides high-speed (90MHz Gain Bandwidth [GBW]) operation, with extremely high precision, excellent long-term stability, and very low 1/f noise. It is ideally suited for high-speed photodiode applications. The OPA380 features an offset voltage of 25µV, offset drift of 0.1µV/°C, and bias current of 50pA. The OPA380 far exceeds the offset, drift, and noise performance that conventional JFET op amps provide.
- FEATURES
- > 1MHz TRANSIMPEDANCE BANDWIDTH
- EXCELLENT LONG-TERM VOSSTABILITY
- BIAS CURRENT: 50pA (max)
- OFFSET VOLTAGE: 25µV (max)
- DYNAMIC RANGE: 4 to 5 Decades
- DRIFT: 0.1µV/°C (max)
- GAIN BANDWIDTH: 90MHz
- QUIESCENT CURRENT: 7.5mA
- SUPPLY RANGE: 2.7V to 5.5V
- SINGLE AND DUAL VERSIONS
- MicroSize PACKAGE: MSOP-8
- APPLICATIONS
- PHOTODIODE MONITORING
- PRECISION I/V CONVERSION
- OPTICAL AMPLIFIERS
- CAT-SCANNER FRONT-END

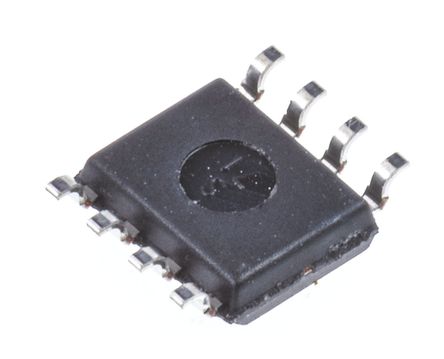

OPA380AID Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 5.50 V |
| Supply Current | 7.5 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 100 dB |
| Quiescent Current | 8.80 A |
| Input Offset Drift | 30.0 nV/K |
| Slew Rate | 80.0 V/μs |
| Gain Bandwidth Product | 90 MHz |
| Input Offset Voltage | 4 µV |
| Input Bias Current | 3 pA |
| Available Channels | S, D |
| Input Current (Min) | 9.5 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 90 MHz |
| Minimum CMRR Range | 95dB ~ 105dB |
| Supply Voltage | 5.5 V |
| Supply Voltage (Max) | 5V ~ 7V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
