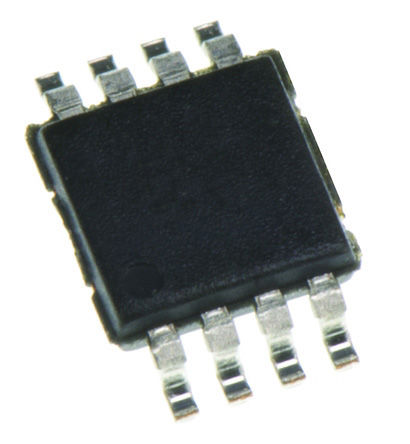

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA381AIDGKT is a precision low power transimpedance amplifier in 8 pin VSSOP package. This high speed single transimpedance amplifier provides 18MHz of gain bandwidth (GBW) with extremely high precision, excellent long term stability and very low 1/f noise. The OPA381 far exceeds offset, drift and noise performance that conventional JFET op-amps provide. The signal bandwidth of transimpedance amplifier depends largely on GBW of amplifier and parasitic capacitance of photodiode as well as feedback resistor. The 18MHz GBW of OPA381 enables a transimpedance bandwidth of greater than 250KHz in most configurations. The device is ideally suited for fast control loops for power level measurement on an optical fibre. In contrast to logarithmic amplifiers, the OPA381 provides very wide bandwidth throughout over full dynamic range. By using an external pull down resistor to -5V, the output voltage range can be extended to include 0V.
Over 250KHz transimpedance bandwidth
Supply voltage range from 2.7V to 5.5V
Bias current of 3pA
Maximum offset voltage of 25µV
Maximum offset drift of 0.1µV/°C
10nV/√Hz low voltage noise
Slew rate of 12V/µs at G = +1
Quiescent current of 800µA
Fast overload recovery
Operating temperature range from -40°C to 125°C
This integrated circuit can be damaged by ESD. Failure to observe proper handling and installation procedures can cause damage to the device.

Show

OPA381AIDGKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Voltage (DC)	5.50 V
Output Current	10mA @5.5V
Supply Current	800 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	95 dB
Input Offset Drift	30.0 nV/K
Bandwidth	250 kHz
Slew Rate	12.0 V/μs
Gain Bandwidth Product	18 MHz
Input Offset Voltage	7 µV
Input Bias Current	3 pA
Input Current (Min)	1 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	18 MHz
Minimum CMRR Range	95 dB
Supply Voltage	5.5 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.97 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/01/15
ECCN Code	EAR99
