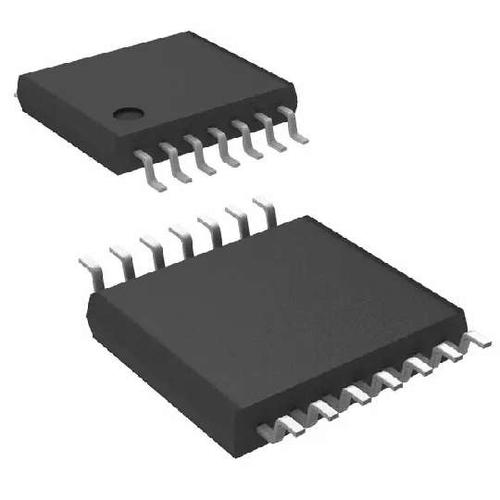

Image is for your reference only,please check specifications for details

OPA4379AIPWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3142896
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
1.8V, 2.9uA, 90kHz, Rail-to-Rail I/O Operational Amplifiers 14-TSSOP -40℃ to 125℃
Stock Locations:
Availability:
1,320 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.74

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA379 family of micropower, low-voltage operational amplifiers is designed for battery-powered applications. These amplifiers operate on a supply voltage as low as 1.8V (±0.9V). High-performance, single-supply operation with rail-to-rail capability (10µV max) makes the OPA379 family usefuel for a wide range of applications.
In addition to _micro_Size packages, the OPA379 family of op amps features impressive bandwidth (90kHz), low bias current (5pA), and low noise (80nV/√Hz) relative to the very low quiescent current (5.5µA max).
The OPA379 (single) is available in SC70-5, SOT23-5, and SO-8 packages. The OPA2379 (dual)comes in SOT23-8 and SO-8 packages. The OPA4379 (quad) is offered in a TSSOP-14 package. All version are specified from -40°C to +125°C.

Show

OPA4379AIPWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Current	2.9 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	90dB ~ 100dB
Input Offset Drift	2.70 µV/K
Bandwidth	90 kHz
Slew Rate	30.0 mV/μs
Gain Bandwidth Product	90 kHz
Input Offset Voltage	400 µV
Input Bias Current	5 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.09 MHz
Minimum CMRR Range	90 dB
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
