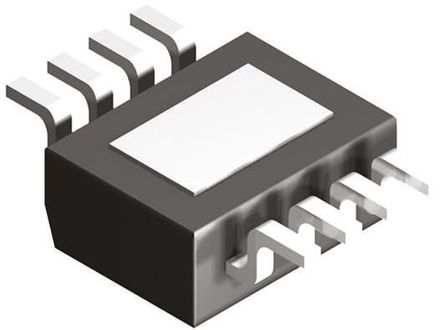

Image is for your reference only,please check specifications for details

OPA445ADDA - TI
Manufacturer:
TI
ManyChip's Part#:
MC13518859
Category:
Operational Amplifier, OP Amp IC
Package:
SO-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA445ADDA Operational Amplifier, Single, 1 Amplifier, 2MHz, 15V/µs, ± 10V to ± 45V, SOIC, 8Pins
Stock Locations:
Availability:
10 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA445 is a monolithic operational amplifier capable of operation from power supplies up to ±45V and output currents of 15mA. It is useful in a wide variety of applications requiring high output voltage or large common-mode voltage swings.
The OPA445"s high slew rate provides wide powerbandwidth response, which is often required for high-voltage applications. FET input circuitry allows the use of high-impedance feedback networks, thus minimizing their output loading effects. Laser trimming of the input circuitry yields low input offset voltage and drift.
The OPA445 is available in standard pinout TO-99, DIP-8, and SO-8 surface-mount packages as well as an SO-8 PowerPAD package for reducing junction temperature. It is fully specified from -25°C to +85°C and operates from -55°C to +125°C. A SPICE macromodel is available for design analysis (from www.ti.com).

Show

OPA445ADDA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SO-8
Supply Current	4.2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	80 dB
Input Offset Drift	10.0 µV/K
Bandwidth	2 MHz
Slew Rate	15.0 V/μs
Gain Bandwidth Product	2 MHz
Input Offset Voltage	1.5 mV
Input Bias Current	10 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	2 MHz
Minimum CMRR Range	80 dB
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.55 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
