OPA548FKTWTG3 - TI
Manufacturer:
TI
ManyChip's Part#:
MC56433200
Category:
Operational Amplifier, OP Amp IC
Package:
TO-263-7
Datasheet:
Datasheet 3D Model
Description:

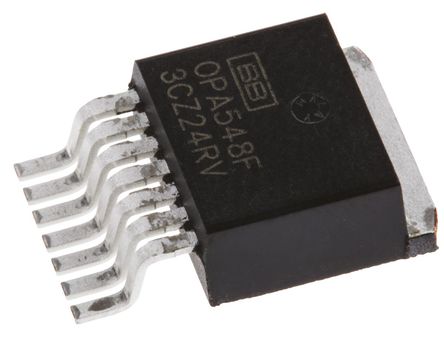

TEXAS INSTRUMENTS OPA548FKTWTG3 Operational Amplifier, Single, 1 Amplifier, 1MHz, 10V/µs, ± 4V to ± 30V, TO-263, 7Pins
Stock Locations:
Availability:
229 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.02

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA548FKTWTG3 is a single high-current Operational Amplifier ideal for driving a wide variety of loads. A laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high-output voltage and current. The OPA548 device operates from either single or dual supplies for design flexibility. In single-supply operation, the input common-mode range extends below ground. The OPA548 device is internally protected against over-temperature conditions and current overloads. In addition, the OPA548 device was designed to provide an accurate, user-selected current limit. Unlike other designs, which use a resistor in series with the output current path, the OPA548 device senses the load indirectly. This allows the current limit to be adjusted from 0 to 5A with a resistor and potentiometer or controlled digitally with a voltage-out or current-out DAC. The enable/status (E/S) pin provides two functions.
Wide output voltage swing
Fully protected - Thermal shutdown and adjustable current limit
Output disable control
Thermal shutdown indicator
Low quiescent current
High-output current -3A continuous and 5A peak
Green product and no Sb/Br

Show

OPA548FKTWTG3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-263-7
Supply Voltage (DC)	60.0 V
Output Current	5000 mA
Supply Current	17 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	7 Position
Common Mode Rejection Ratio	80 dB
Input Offset Drift	30.0 µV/K
Bandwidth	1 MHz
Slew Rate	10.0 V/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	10 mV
Input Bias Current	100 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	80 dB
Supply Voltage (Max)	30 V
	Show
Size-Length	10.1 mm
Size-Width	8.89 mm
Size-Height	4.44 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
