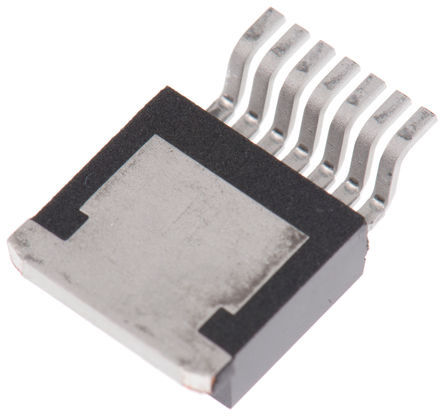

Image is for your reference only,please check specifications for details

OPA552FAKTWT - TI
Manufacturer:
TI
ManyChip's Part#:
MC15840761
Category:
Operational Amplifier, OP Amp IC
Package:
TO-263-7
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 12MHz, 24V/µs, 8V to 60V, TO-263, 7Pins
Stock Locations:
Availability:
297 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.34

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA552FAKTWT is a single high-voltage/high-current Operational Amplifier for use with transducer excitation. The OPA552 is optimized for gains of 5 or greater and offers higher speed with a slew rate of 24V/µs and a bandwidth of 12MHz. These laser-trimmed, monolithic integrated circuits provide excellent low-level accuracy along with high output swing. High performance is maintained as the amplifier swings to its specified limits. The OPA55x device is internally protected against overtemperature conditions and current overloads. The thermal shutdown indicator flag provides a current output to alert the user when thermal shutdown has occurred.
Fully protected - Thermal shutdown and output current-limited
Thermal shutdown indicator
200mA Continuous high output current
14nV/√Hz Low noise
2V from rail Wide output swing
7µV/°C Typical offset drift
102dB Typical CMRR
Green product and no Sb/Br

Show

OPA552FAKTWT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-263-7
Supply Current	7 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	7 Position
Common Mode Rejection Ratio	92 dB
Input Offset Drift	7.00 µV/K
Bandwidth	12 MHz
Slew Rate	24.0 V/μs
Gain Bandwidth Product	12 MHz
Input Offset Voltage	1 mV
Input Bias Current	20 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	12 MHz
Minimum CMRR Range	92 dB
Supply Voltage	8V ~ 60V
	Show
Size-Length	10.1 mm
Size-Width	8.89 mm
Size-Height	4.44 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
