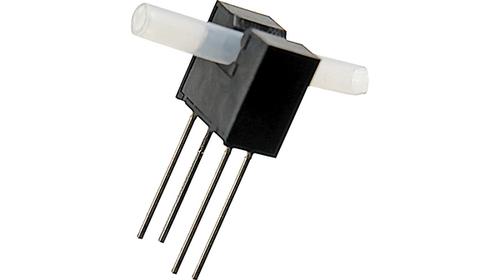

Image is for your reference only,please check specifications for details

OPB350 - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC5506019
Category:
Optical Sensor
Package:
BAG
Datasheet:
Datasheet 3D Model
Description:
Transistor Output Slotted Switch, 1Channel, 1.91mm Slot Width, ROHS COMPLIANT, PLASTIC PACKAGE-4
Stock Locations:
Availability:
1,015 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.22

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPB350 is a tube Liquid Sensor is designed to work with 1/8-inch outside diameter clear tube. Clear liquid present causes the phototransistor to sink the maximum current, while dark liquid present causes it to sink the minimum current. The OCB350 series provides a full solution with automatic calibration capability and a pre-set trip level.
Opaque plastic housing enhances ambient light rejection
Printed circuit board mounting
-40 to 85°C Operating temperature range

Show

OPB350 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	BAG
Pin Pitch	8.13 mm
Supply Voltage (DC)	4.75V ~ 5.25V
Voltage Rating (DC)	30.0 V
Output Current	50 mA
Wavelength	890 nm
Input Current	50.0 mA
Peak Wavelength	890 nm
Power Dissipation	100 mW
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	50 mA
Reverse Breakdown Voltage	2 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Lead Length	8.38 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
