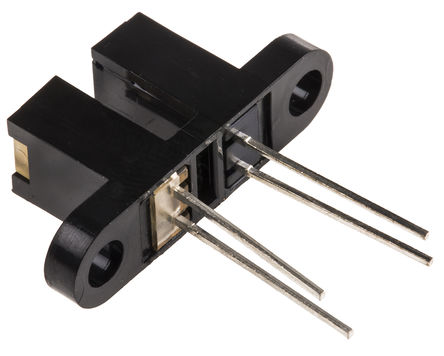

Image is for your reference only,please check specifications for details

OPB365T55 - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC21374932
Category:
Optical Sensor
Package:
BULK
Datasheet:
Datasheet 3D Model
Description:
OPTEK TECHNOLOGY OPB365T55 Transmissive Photo Interrupter, Phototransistor, Through Hole, 3.18mm, 1.27mm, 50mA, 2V
Stock Locations:
Availability:
211 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.49

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPB365T55 is a Slotted Optical Switch with plastic discrete shell and PC mountable leads. The phototransistor output slotted optical switch provides the design engineer with the flexibility of a custom device from a standard product line. Building from a standard housing with a 0.125-inch wide slot. Discrete shells (exposed on the parallel faces inside the device throat) are either IR transmissive plastic for applications where aperture contamination may occur or opaque plastic with aperture openings for maximum protection against ambient light.
Base mount IR transmissive
Both mounting tabs
0.220" (5.59mm) Lead space
0.050" Aperture width in front of emitter
0.050" Aperture width in front of sensor

Show

OPB365T55 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	BULK
Output Voltage	30.0 V
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.3 V
Wavelength	890 nm
Input Current	20.0 mA
Peak Wavelength	890 nm
Power Dissipation	100 mW
Rise Time	10 µs
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	50 mA
Reverse Breakdown Voltage	2 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	24.61 mm
Size-Width	6.35 mm
Size-Height	10.8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
