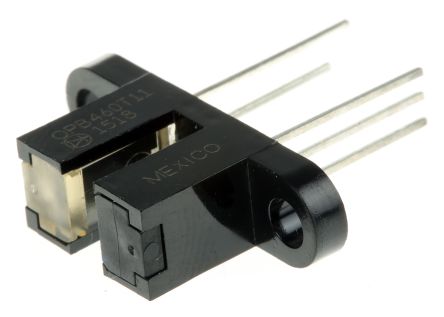

Image is for your reference only,please check specifications for details

OPB460T11 - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC47986733
Category:
Photoelectric Sensor
Package:
PCB Mount
Datasheet:
Datasheet 3D Model
Description:
OPTEK TECHNOLOGY OPB460T11 Transmissive Photo Interrupter, 10K Pullup, Through Hole, 3.18mm, 0.25mm, 40mA, 2V
Stock Locations:
Availability:
177 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.31

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**OPB460, OPB470, OPB480 and OPB490 Series Slotted Optical Switches**
This family of Photologic® slotted optical switches, from Optek Technology, offer you various options enabling design flexibility. This flexibility includes choices of slot width, aperture, shell material, mounting configurations and lead spacing, or wires. An opaque plastic housing minimizes the sensitivity to visible and near IR light. The parallel faces inside the slot are covered with an IR transmissive plastic or opaque plastic with an opening. The IR transmissive plastic is suitable for applications which require dust protection and the opaque is for applications that require maximum protection against ambient light. Suitable applications for the slotted optical switches include; mechanical switch replacement, speed indication, mechanical limit indication and edge sensing.

Show

OPB460T11 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	PCB Mount
Operating Voltage	18.0 V
Output Voltage	25.0 V, 14.5 V
Supply Current	7.5 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Forward Voltage	1.7 V
Wavelength	890 nm
Input Current	20.0 mA
Peak Wavelength	890 nm
Power Dissipation	275 mW
Rise Time	50 ns
Forward Current	40 mA
Reverse Breakdown Voltage	2 V
Forward Current (Max)	40 mA
Fall Time	50 ns
Fall Time (Max)	50 ns
Fall Time (Max)	50 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	275 mW
Supply Voltage	4.5V ~ 16V
	Show
Size-Length	24.89 mm
Size-Width	6.6 mm
Size-Height	11.05 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Bag
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
