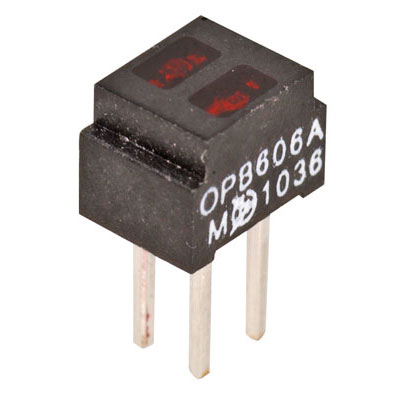

Image is for your reference only,please check specifications for details

OPB606A - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC13197504
Category:
Photoelectric Sensor
Package:
PDIP-4
Datasheet:
Datasheet 3D Model
Description:
Diffuse Photoelectric Sensor, 2.79mm Min, 2.79mm Max, 0.5mA, 1Channel, Rectangular, Through Hole Mount, ROHS COMPLIANT PACKAGE-2
Stock Locations:
Availability:
216 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.18

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPB607A series Object Sensor that consists of an infrared Light Emitting Diode (LED) and an NPN silicon photodarlington which are mounted "side-by-side" on parallel axes in a black plastic housing. The emitting diode and phototransistor of both the device is encapsulated in a filtering epoxy that reduces ambient light noise. On both models, the phototransistors respond to radiation from the emitter only when a reflective object passes within the field of view.
Choice of photodarlington output
Unfocused for sensing diffuse surface
Plastic housing
Filtered

Show

OPB606A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	PDIP-4
Output Voltage	30.0 V
Number of Channels	1 Channel
Forward Voltage	1.7 V
Wavelength	935 nm
Input Current	20.0 mA
Peak Wavelength	935 nm
Power Dissipation	75 mW
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	50 mA
Reverse Breakdown Voltage	2 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	75 mW
Supply Voltage	1.7 V
	Show
Size-Length	6.1 mm
Size-Width	4.39 mm
Size-Height	4.5 mm
Material	Plastic
Operating Temperature	-40℃ ~ 85℃
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
