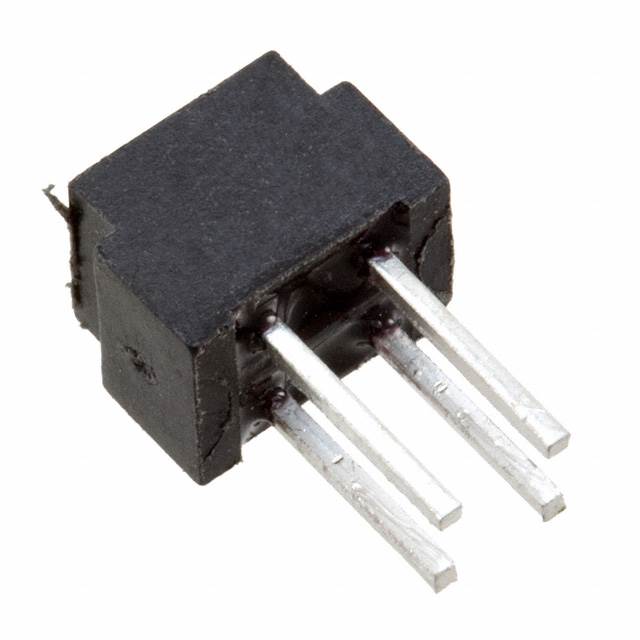

Image is for your reference only,please check specifications for details

OPB608V - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC10199396
Category:
Photoelectric Sensor
Package:
PCB Mount
Datasheet:
Datasheet 3D Model
Description:
Sensor; Reflective; Phototransistor; 5 To 30V; 850NM; 0.1W(1/10W); 25mA
Stock Locations:
Availability:
254 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.34

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPB608V is a Reflective Object Sensor with plastic housing and phototransistor output. This through hole mounting photo interrupter features reduced ambient light sensitivity. The reflective switches consist of an infrared emitting device (LED or VCSEL) and a NPN silicon phototransistor mounted "side-by-side" on a parallel axis in a black opaque plastic housing. It has an emitting device and a phototransistor that are encapsulated in a visible filtering epoxy. The phototransistor responds to radiation from the emitter only when a reflective object passes within its field of view. The phototransistor has enhanced low current roll-off to improve the contrast ratio and immunity to background irradiance. LED versions are designed for near-field applications. The VCSEL version is designed for longer distances. Designed for applications with reflective distances between 1.27 and 30.48mm.
Unfocused for sensing diffuse surface
Enhanced signal to noise ratio
850nm LED peak wavelength
Rbe transistor sensor
100mW Power dissipation
0 to 70°C Operating temperature range

Show

OPB608V Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	PCB Mount
Output Voltage	30.0 V
Output Current	25.0 A
Number of Channels	1 Channel
Forward Voltage	2.2 V
Wavelength	850 nm
Input Current	12.0 mA
Peak Wavelength	850 nm
Power Dissipation	100 mW
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	12 mA
Reverse Breakdown Voltage	5 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	6.1 mm
Size-Width	4.39 mm
Size-Height	4.5 mm
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
