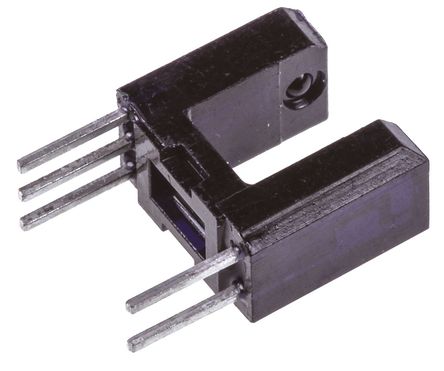

Image is for your reference only,please check specifications for details

OPB625 - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC4569411
Category:
Photoelectric Sensor
Package:
PCB Mount
Datasheet:
Datasheet 3D Model
Description:
OPTEK TECHNOLOGY OPB625 Transmissive Photo Interrupter, 10K Pullup, Through Hole, 4.83mm, 1.52mm, 50mA, 3V
Stock Locations:
Availability:
1,435 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.97

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPB625 is a Photologic® Slotted Optical Switch with 10K pull-up (buffered or inverted) output. This printed circuit board mounting switch consists of an 890nm, infrared light emitting diode (LED) and a monolithic integrated circuit that incorporates a photodiode, a linear amplifier and a Schmitt trigger on a single silicon chip. Device is also TTI/LSTTL compatible and can drive up to 10 TTL loads. Suitable for mechanical switch replacement, speed indication (tachometer), mechanical limit indication and edge sensing.
Non-contact switching
Enhanced signal to noise ratio
240mW Power dissipation
-40 to 100°C Operating temperature range

Show

OPB625 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	PCB Mount
Pin Pitch	2.60 mm
Supply Voltage (DC)	12.0 V, 16.0 V (max)
Voltage Rating (DC)	18.0 V
Voltage Rating (AC)	3.00 V
Output Voltage	1.60 V
Output Current	16.0 mA
Supply Current	12 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Forward Voltage	1.6 V
Wavelength	890 nm
Input Current	10.0 mA
Peak Wavelength	890 nm
Power Dissipation	240 mW
Rise Time	30 ns
Forward Current	50 mA
Reverse Breakdown Voltage	3 V
Forward Current (Max)	50 mA
Fall Time	30 ns
Fall Time (Max)	30 ns
Fall Time (Max)	30 ns
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	240 mW
Supply Voltage	4.5V ~ 16V
	Show
Size-Length	5.58 mm
Size-Width	10.16 mm
Size-Height	9.52 mm
Operating Temperature	-40℃ ~ 100℃ (TA)
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
