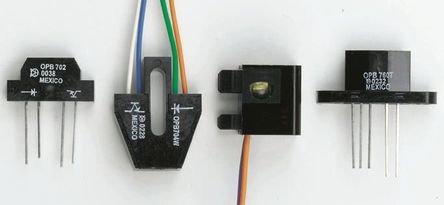

Image is for your reference only,please check specifications for details

OPB702 - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC8435804
Category:
Photoelectric Sensor
Package:
PCB Mount
Datasheet:
Datasheet 3D Model
Description:
Diffuse Photoelectric Sensor, 3.81mm Min, 3.81mm Max, 0.05mA, 1Channel, Rectangular, Through Hole Mount
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.64

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**OPB700/701/702 Reflective Object Sensors**
OPB700 and OPB700ALZ series of sensors from Optek consist of an infrared emitting diode and an NPN silicon phototransistor, mounted side-by-side on converging optical axs in a black plastic housing. OPB701 and OPB701ALZ sensors consist of an infrared emitting diode and an NPN silicon photodarlington, and also mounted side-by-side on converging optical axs in a cost-effective black plastic housing. The interconnect wires for these devices are UL approved #26 AWG, with Teflon insulation, stripped & tinned. The OPB700 and OPB701 have 4" (101 mm) wire length while the OPB700ALZ & OPB701ALZ have 18" (457 mm) wire length.

Show

OPB702 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	PCB Mount
Operating Voltage	1.70 V
Output Voltage	30.0 V
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.7 V
Wavelength	890 nm
Input Current	40.0 mA
Power Dissipation	100 mW
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	50 mA
Forward Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	17.78 mm
Size-Width	4.78 mm
Size-Height	8.89 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
