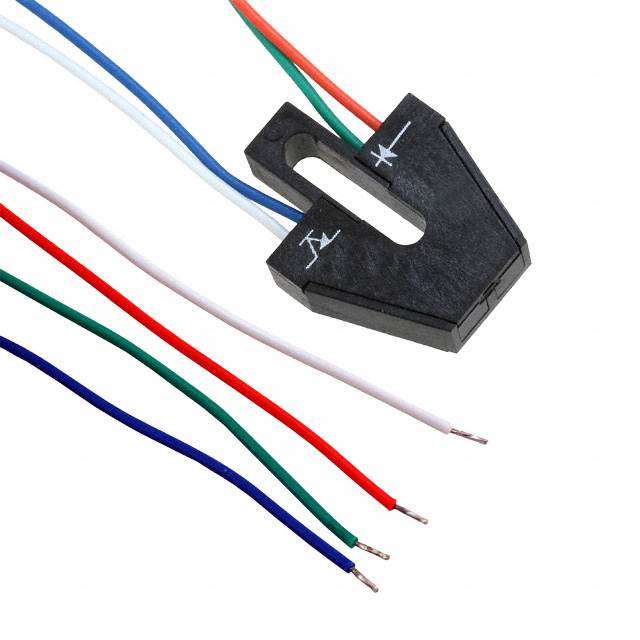

Image is for your reference only,please check specifications for details

OPB704WZ - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC14181948
Category:
Photoelectric Sensor
Package:
Pre-Wired
Datasheet:
Datasheet 3D Model
Description:
OPB704 Series 30V 890nm 40mA 26AWG Phototransistor Reflective Object Sensor
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.65

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPB704WZ is a Reflective Object Sensor consist of an infrared (890nm) light emitting diode (LED) and a NPN silicon phototransistor, mounted side-by-side on converging optical axes in a black plastic housing and are designed for PC board mounting. It is designed for remote mounting to utilize interconnect wires of UL approved 26AWG, 24-inch (61cm) minimum length, stripped and tinned.
890nm LED peak
26AWG Wire in 24"
100mW Power dissipation

Show

OPB704WZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	4 Pin
Case/Package	Pre-Wired
Output Voltage	30 V
Number of Channels	1 Channel
Forward Voltage	1.7 V
Wavelength	890 nm
Input Current	40 mA
Peak Wavelength	890 nm
Power Dissipation	100 mW
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	40 mA
Reverse Breakdown Voltage	2 V
Forward Current (Max)	40 mA
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	17.8 mm
Size-Width	5.1 mm
Size-Height	22.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
