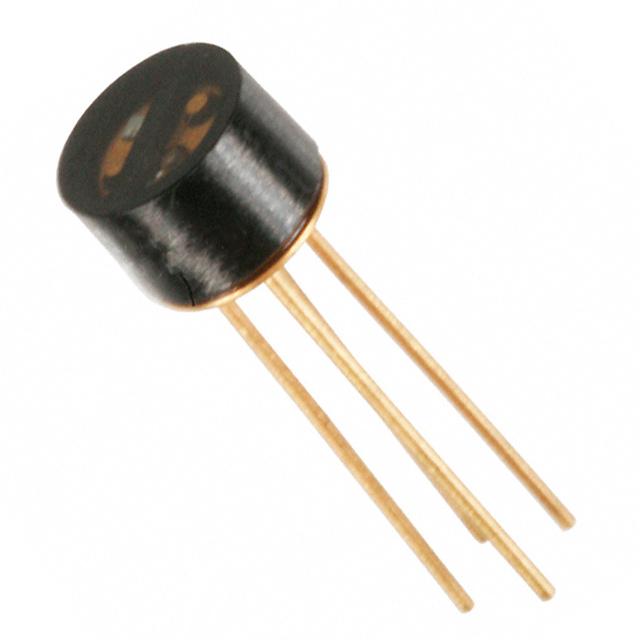

Image is for your reference only,please check specifications for details

OPB710 - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC39778263
Category:
Photoelectric Sensor
Package:
TO-72
Datasheet:
Datasheet 3D Model
Description:
Sensor; Reflective; Phototransistor; 3V Emitter; 30V Detector; 0.25W(1/4W); 25mA
Stock Locations:
Availability:
273 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 59.18

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPB710 is a Reflective Object Sensor that consists of a gallium arsenide infrared emitting diode and an NPN silicon phototransistor. On each sensor, the emitting diode and detector are mounted side-by-side on parallel axes. A black plastic sleeve is attached and filled with encapsulating epoxy to cover the emitter and detector. The package contains an internal barrier which prevents diode emissions from reaching the sensor directly.
Photodarlington output
Unfocused for sensing diffuse surface
Clear encapsulating epoxy
Filtered to reduce the effect of visible or fluorescent light

Show

OPB710 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-72
Supply Voltage (DC)	5.00 V
Voltage Rating (DC)	30.0 V
Operating Voltage	5.00 V
Output Voltage	30.0 V
Forward Voltage	1.5 V
Wavelength	935 nm
Input Current	50.0 mA
Peak Wavelength	935 nm
Power Dissipation	150 mW
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	50 mA
Forward Current (Max)	50 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	150 mW
Supply Voltage	1.5 V
	Show
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
