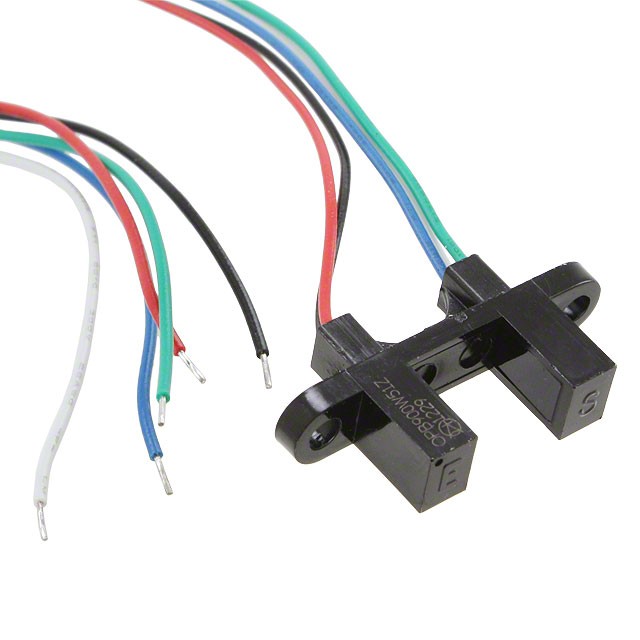

Image is for your reference only,please check specifications for details
- OPB910W55Z - TT Electronics/Optek Technology
-
Manufacturer:TT Electronics/Optek Technology
-
ManyChip's Part#:MC26911903
-
Category:Optical Sensor
-
Package:Pre-Wired
-
Datasheet:Datasheet 3D Model
-
Description:Sensor, Transmissive, Slotted Optical Switch, 9.5mm Slot, 890nm, 300mW, 2V
-
Stock Locations:
-
Availability:305 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.08
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description:
- The OPB900- OPB913series of Photologic® Integrated Circuit Switches provide optimum flexibility for the design engineer. Building from a standard housing with a 0.375” (9.5mm) wide slot, a user can specify the type and polarity of the TTL output and the type of shell material.
- Electrical output can be specified as either TTL Totem Pole(buffered) or TTL Open Collector, either of which can be supplied with an inverted output polarity.
- All versions have the added stability of hysteresis built into the amplification circuitry.
- Features:
- • 0.375” (9.5 mm) wide gap
- • Choice of logical output configurations
- • Choice of opaque or IR transmissive housing material
- • Choice of PCBoard or 26 AWG, UL rated wire
- • Data rates to 250 kBaud
- Applications:
- • Mechanical switch replacement
- • Speed indication (tachometer)
- • Mechanical limit indication
- • Edge sensing
- • Object sensing
OPB910W55Z Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 5 Pin |
| Case/Package | Pre-Wired |
| Voltage Rating (DC) | 10.0 V |
| Output Voltage | 35.0 V |
| Output Current | 100 µA |
| Supply Current | 15 mA |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.7 V |
| Wavelength | 890 nm |
| Input Current | 20.0 mA |
| Power Dissipation | 300 mW |
| Rise Time | 70 ns |
| Forward Current | 40 mA |
| Reverse Breakdown Voltage | 2 V |
| Forward Current (Max) | 40 mA |
| Fall Time | 70 ns |
| Fall Time (Max) | 70 ns |
| Fall Time (Max) | 70 ns |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 300 mW |
| Supply Voltage | 4.75V ~ 5.25V |
| Show | |
| Size-Length | 30.99 mm |
| Size-Width | 6.35 mm |
| Size-Height | 10.8 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
