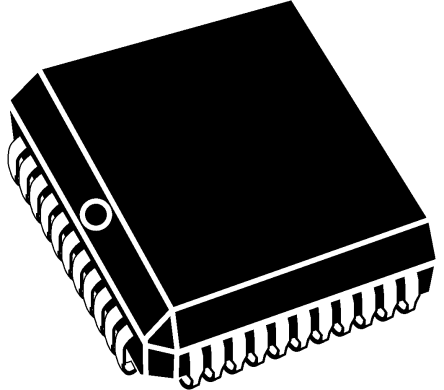

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The P87C52SBAA is a 8-bit Microcontroller based on is a high-performance static 80C51 design fabricated with high-density CMOS technology. The device contain 256 x 8 RAM, 32 I/O lines, three 16-bit counter/timers, a six-source, four-priority level nested interrupt structure, a serial I/O port for either multi-processor communications, I/O expansion or full duplex UART and on-chip oscillator and clock circuits. In addition, the device is a low power static design which offers a wide range of operating frequencies down to zero. Two software selectable modes of power reduction idle mode and power-down mode are available. The idle mode freezes the CPU while allowing the RAM, timers, serial port and interrupt system to continue functioning. The power-down mode saves the RAM contents but freezes the oscillator, causing all other chip functions to be inoperative.
80C51 Central processing unit
Memory addressing capability 64kB ROM and 64kB RAM
Clock can be stopped and resumed
Idle mode
Power-down mode
CMOS and TTL compatible
2 Speed ranges at VCC = 5V - 0 to 30MHz with 6-clock operation, 0 to 33MHz with 12-clock operation
Dual data pointers
Security bits - ROM (2 bits), OTP (3 bits)
Encryption array - 64 bytes
Four interrupt priority levels
Six interrupt sources
Four 8-bit I/O ports
Full-duplex enhanced UART
Programmable clock-out pin
Asynchronous port reset
Low EMI (inhibit ALE and slew rate controlled outputs)
Wake-up from Power Down by an external interrupt

Show

P87C52SBAA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	44 Pin
Case/Package	PLCC
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Number of Positions	44 Position
Clock Speed	16.0 MHz
RAM Memory Size	256 b
Number of Bits	8 Bit
Number of I/O Pins	32 IO
Access Time	16.0 µs
Core Architecture	8051
Memory Size	256 B
Number of Inputs and Outputs	32 Input IO
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	16.66 mm
Size-Width	16.66 mm
Size-Height	4.06 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
