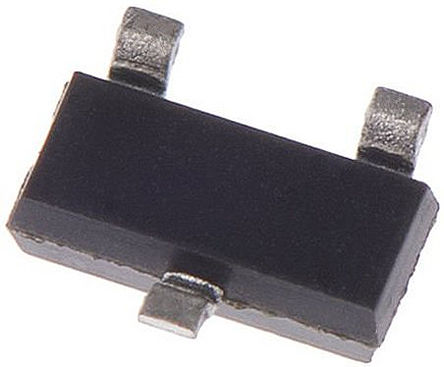

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PBSS4140T is a 1A NPN breakthrough-in small signal (BISS) Transistor in a plastic package. It is suitable for use with the general purpose switching and muting, battery driven equipment"s.
Low collector-emitter saturation voltage VCEsat
High current capabilities
Improved device reliability due to reduced heat generation
PNP complement is PBSS5140T
ZT Marking code

Show

PBSS4140T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-236
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	300 mW
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	1A
hFE Min	200
DC Current Gain (hFE)	300
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	0.45 W
	Show
Size-Length	3 mm
Size-Width	1.4 mm
Size-Height	1 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
