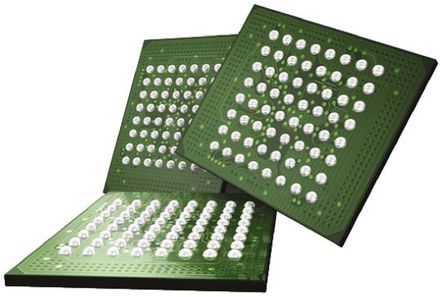

Image is for your reference only,please check specifications for details
- PC28F00AM29EWHA - Micron
-
Manufacturer:Micron
-
ManyChip's Part#:MC61043637
-
Category:Flash Memory, Flash
-
Package:FBGA-64
-
Datasheet:Datasheet 3D Model
-
Description:NOR Flash Parallel 3V/3.3V 1Gbit 128M/64M x 8Bit/16Bit 100ns 64Pin Fortified BGA Tray
-
Stock Locations:
-
Availability:256 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 14.69
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PC28F00AM29EWHA is a 1GB asynchronous uniform block parallel NOR Flash Embedded Memory manufactured on 65nm multilevel cell (MLC) technology. READ, ERASE and PROGRAM operations are performed using a single low-voltage supply. Upon power-up, the device defaults to read array mode. The main memory array is divided into uniform blocks that can be erased independently so that valid data can be preserved while old data is purged. PROGRAM and ERASE commands are written to the command interface of the memory. An on-chip program/erase controller simplifies the process of programming or erasing the memory by taking care of all special operations required to update the memory contents. The end of a PROGRAM or ERASE operation can be detected and any error condition can be identified. The command set required to control the device is consistent with JEDEC standards. The M29EW supports asynchronous random read and page read from all blocks of the array.
- Asynchronous random/page read
- Buffer program - 512-word program buffer
- Memory organization - uniform blocks - 128-Kbytes or 64-Kwords each
- Program/erase controller - embedded byte/word program algorithms
- Program/erase suspend and resume capability
- Read from any block during a PROGRAM SUSPEND operation
- Read or program another block during an ERASE SUSPEND operation
- BLANK CHECK operation to verify an erased block
- Unlock bypass, block erase, chip erase and write to buffer capability
- Fast buffered/batch programming
- Fast block/chip erase
- VPP/WP# pin protection - protects first or last block regardless of block protection settings
- Software protection
- Extended memory block
- Programmed or locked at the factory or by the customer
- Low power consumption - standby mode
- 100000 Minimum ERASE cycles per block
- Data retention - 20 years typical
PC28F00AM29EWHA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | FBGA-64 |
| Supply Voltage (DC) | 2.70V (min) |
| Supply Current | 31 mA |
| Number of Positions | 64 Position |
| Number of Bits | 8, 16 Bit |
| Access Time | 100 ns |
| Access Time(Max) | 100 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 11 mm |
| Size-Width | 13 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | 3A991.b.1.a |
