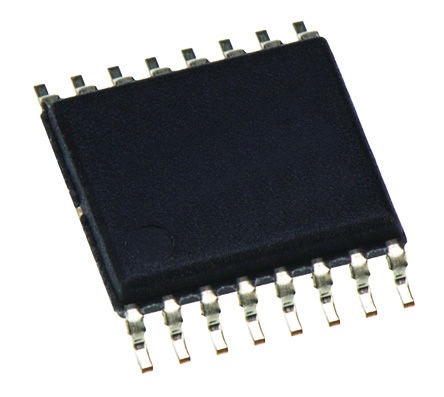

Image is for your reference only,please check specifications for details

PCM1770PW - TI
Manufacturer:
TI
ManyChip's Part#:
MC15876696
Category:
Digital to Analog, DAC IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PCM1770PW Digital to Analogue Converter, 24Bit, 50KSPS, Serial, 1.6V to 3.6V, TSSOP, 16Pins
Stock Locations:
Availability:
61 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.15

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM1770PW is a CMOS monolithic low-power stereo Digital-to-analog Converter (DAC) with Headphone amplifier. The data converter uses TIs enhanced multilevel architecture, which employs noise shaping and multilevel amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1770 device accepts several industry standard audio data formats with 16 to 24-bit data, left-justified, I²S, etc. providing easy interfacing to audio DSP and decoder device. Sampling rates up to 50kHz are supported. A full set of user-programmable functions is accessible through a 3-wire serial control port, which supports register write functions.
Software control
Slave/master selectable
Digital attenuation - 0 to -62dB, 1dB/step
Zero cross attenuation
Digital soft mute
Monaural analog-in with mixing
Monaural speaker mode
Pop-noise-free circuit
Green product and no Sb/Br

Show

PCM1770PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Number of Outputs	2 Output
Supply Current	1.5 mA
Number of Channels	2 Channel
Number of Positions	16 Position
Number of Bits	24 Bit
Power Dissipation	0.012 W
Sample Rate	50 ksps
Power Consumption	6.50 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	12 mW
Number of DACs	2 DAC
Supply Voltage	1.6V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.6 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
