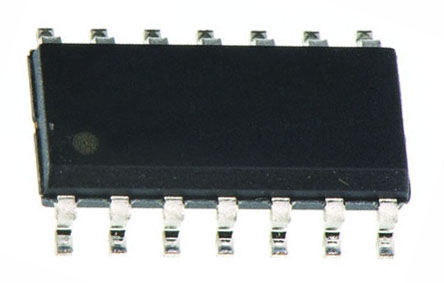

PCM1801U - TI
Manufacturer:
TI
ManyChip's Part#:
MC10385030
Category:
Analog to Digital, ADC IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PCM1801U. Analogue to Digital Converter, Audio, 16Bit, 48KSPS, Single, 4.5V, 5.5V, SOIC
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.84

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM1801U is a single-chip stereo Analog-to-digital Converter (ADC) with single-ended analog voltage inputs. The PCM1801 uses a delta-sigma™ modulator with 64 times oversampling, a digital decimation filter and a serial interface that supports slave mode operation and two data formats. The PCM1801 is suitable for a wide variety of consumer applications where good performance is required.
anti-aliasing filter
PCM audio interface - Left-justified, I²S
Green product and no Sb/Br

Show

PCM1801U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	4.50V (min)
Supply Current	18.0 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	14 Position
Number of Bits	16 Bit
Power Dissipation	90 mW
Sample Rate	48 ksps
Power Consumption	90.0 mW
Number of ADCs	2 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	120 mW
Number of Input Channels	2 Channel
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	8.65 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
