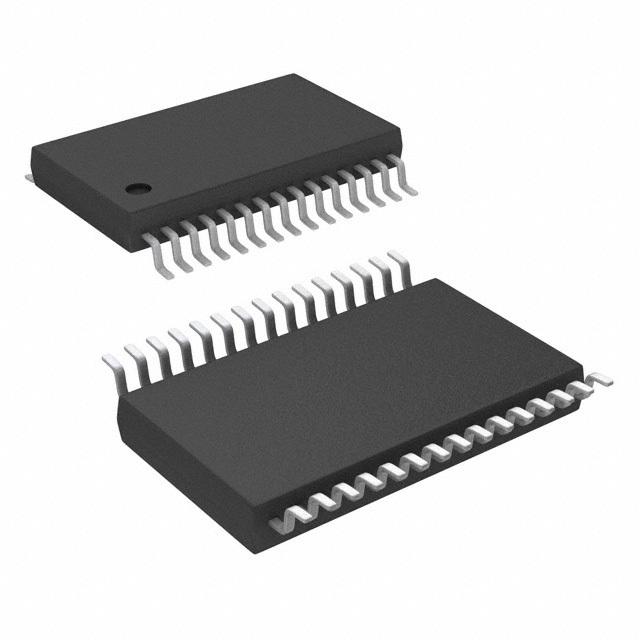

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PCM186x family of audio front-end devices takes a new approach to audio-function integration to ease compliance with European Ecodesign legislation while enabling high-performance end products. With no need for a 5-V supply or an external programmable-gain amplifier, smaller, smarter products are feasible at reduced cost.
- The PCM186x"s highly flexible audio front end supports input levels from small-mV microphone inputs to 2.1 VRMS line Inputs without external resistor dividers. The PCM186x family integrates many system-level functions that assist or replace some DSP functions.
- All these features are available using a single 3.3V power supply. An integrated bandgap voltage reference provides excellent PSRR, so that a dedicated analog 3.3V rail may not be required.
- Block Diagrams comparing the devices in the PCM186x can be found in _Functional Block Diagram_.
PCM1860DBTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 30 Pin |
| Case/Package | TSSOP-30 |
| Supply Current | 16 mA |
| Number of Channels | 2 Channel |
| Power Dissipation | 85 W |
| Sample Rate | 192 ksps |
| Power Consumption | 85.0 mW |
| Number of ADCs | 2 ADC |
| Input Voltage (Max) | 3.6 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 8, 4 Channel |
| Supply Voltage | 3V ~ 3.6V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
