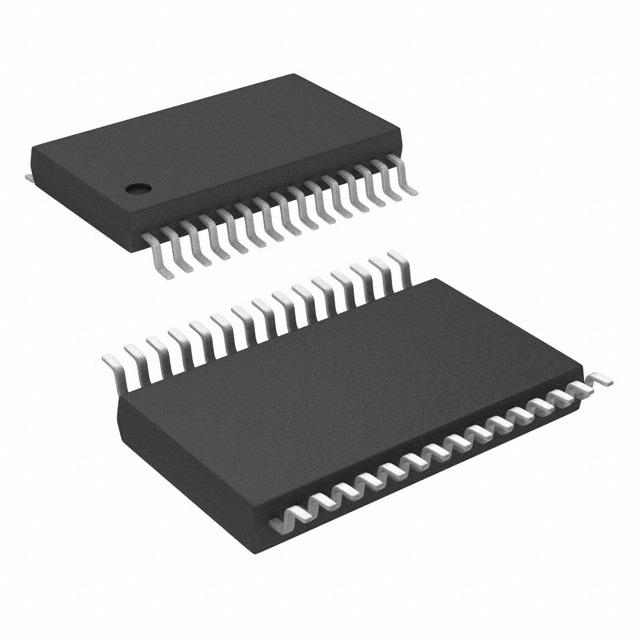

Image is for your reference only,please check specifications for details

PCM1863DBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC15426866
Category:
Analog to Digital, ADC IC
Package:
TSSOP-30
Datasheet:
Datasheet 3D Model
Description:
110dB 2CH S/W Controlled Audio ADC With Universal Front End 30-TSSOP -40℃ to 125℃
Stock Locations:
Availability:
239 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.69

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM1863DBT is a 110dB 2-channel S/W controlled audio Digital to Analogue Converter with universal front end. The PCM186x family of audio front-end devices takes a new approach to audio-function integration to ease compliance with European ecodesign legislation while enabling high-performance end products. The PCM186x"s highly flexible audio front end supports input levels from small-mV microphone inputs to 2.1VRMS line Inputs without external resistor dividers. The PCM186x family integrates many system-level functions that assist or replace some DSP functions.
Integrated high performance audio PLL
Energysense audio content detector for auto system wakeup and sleep
Master or slave audio interface
Automatic PGA Clipping Suppression control
Green product and no Sb/Br
This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

PCM1863DBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	30 Pin
Case/Package	TSSOP-30
Supply Voltage (DC)	3.00V (min)
Supply Current	31 mA
Number of Channels	2 Channel
Number of Positions	30 Position
Number of Bits	24 Bit
Power Dissipation	85 W
Sample Rate	192 KSPS
Power Consumption	85.0 mW
Number of ADCs	2 ADC
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	4, 8 Channel
Supply Voltage	3.3 V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
