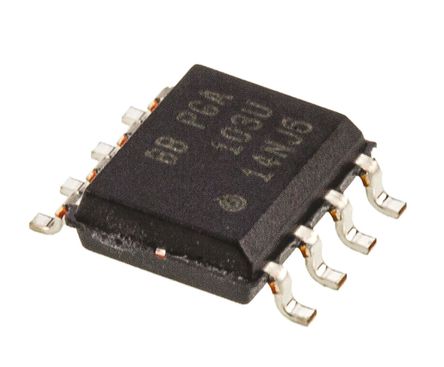

PGA103U - TI
Manufacturer:
TI
ManyChip's Part#:
MC7755007
Category:
Amplifier, Buffer IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PGA103U Programmable/Variable Amplifier, 1Channels, 1 Amplifier, 1.5MHz, -40℃, 125℃, ± 4.5V to ± 18V
Stock Locations:
Availability:
158 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.37

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGA103U is a Programmable Gain Amplifier for general purpose applications. Gains of 1, 10 or 100 are digitally selected by two CMOS/TTL-compatible inputs. The PGA103 is ideal for systems that must handle wide dynamic range signals. The PGA103"s high speed circuitry provides fast settling time, even at G=100.
CMOS/TTL compatible inputs
±0.05% Maximum low gain error
Green product and no Sb/Br
This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

PGA103U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	36.0V (max)
Operating Voltage	9V ~ 36V
Supply Current	2.6 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	2.60 mA
Bandwidth	1.5 MHz
Slew Rate	9.00 V/μs
Gain	100 dB
Input Offset Voltage	0.2 mV
Input Bias Current	50 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1.5 MHz
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	9 V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
