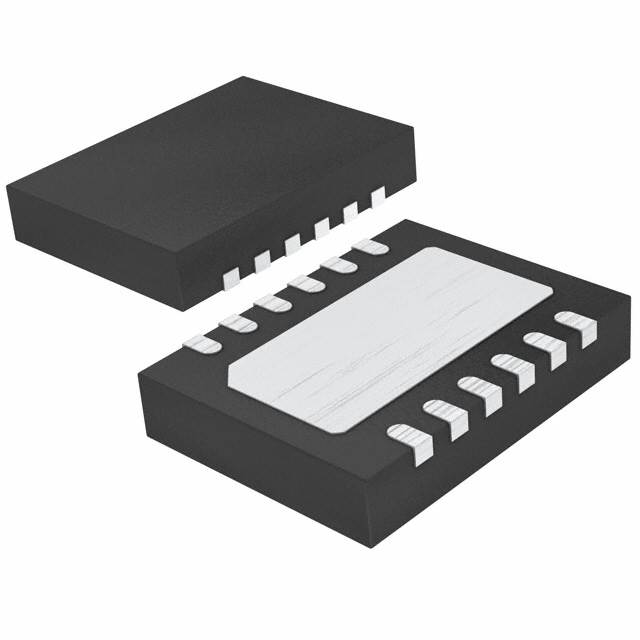

Image is for your reference only,please check specifications for details
- PI3USB10MZEEX - Pericom Semiconductor
-
Manufacturer:Pericom Semiconductor
-
ManyChip's Part#:MC97455270
-
Category:Multiplexer IC
-
Package:TDFN-12
-
Datasheet:Datasheet 3D Model
-
Description:2: 1 5V 2Channel 4Ω Surface Mount Mux/DeMux USB 2 Switch - TDFN-12
-
Stock Locations:
-
Availability:1,663 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.04
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * USB 2.0 compliant * RON is 4Ω typical * Low bit-to-bit skew * Low Crosstalk: -31dB @ 250MHz * Near-Zero propagation delay: 250ps * Switching speed: 9ns * Channel On Capacitance: 6pF (typical) * VCC Operating Range: 2.7V to 4.2V ±10% * ESD>2000V - Human Body Model * >700 MHz bandwidth (or data frequency) * Packaging (Pb-free & Green): * 12-contact, 1.6mm x 2.2mm, TQFN (ZK) * 12-contact, 3mm x 3.5mm, TDFN (ZE)
PI3USB10MZEEX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 12 Pin |
| Case/Package | TDFN-12 |
| Number of Outputs | 2 Output |
| Supply Current | 800 µA |
| Number of Channels | 2 Channel |
| Power Dissipation | 500 mW |
| Bandwidth | 250 MHz |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 700 MHz |
| Power Dissipation (Max) | 500 mW |
| Supply Voltage (Max) | 5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 3.5 mm |
| Size-Width | 3 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
