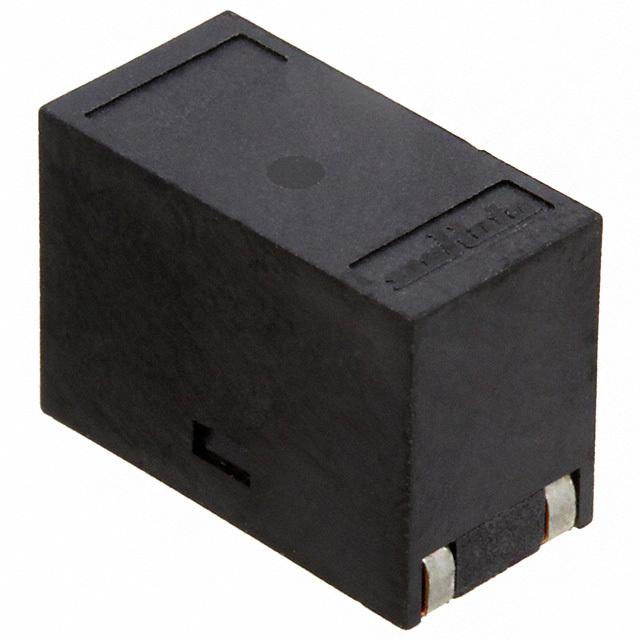

Image is for your reference only,please check specifications for details
- PLT10HH9016R0PNL - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC46086011
-
Category:Inductor Choke
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:900Ω @ 10MHz Common Mode Choke Surface Mount Power Line 6A 2 Lines 8.5mOhm -55℃ ~ 125℃
-
Stock Locations:
-
Availability:300 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.06
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2 Line Common Mode Choke Surface Mount 900 Ohms @ 10MHz 6A DCR 8.5mOhm
PLT10HH9016R0PNL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SMD |
| Voltage Rating (DC) | 100 V |
| Inductance | 14 mH |
| Test Frequency | 10 MHz |
| Current Rating (Max) | 6 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 100 VDC |
| Resistance (DC Max) | 8.5 mΩ |
| Show | |
| Size-Length | 13.1 mm |
| Size-Width | 6.6 mm |
| Size-Height | 9.4 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
