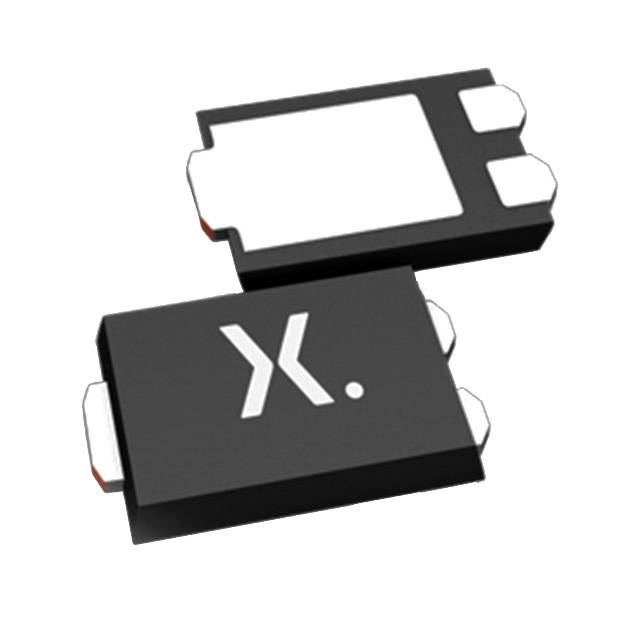

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

PMEG060V050EPDZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-1289
Number of Positions	3 Position
Forward Voltage	560mV @5A
Power Dissipation	3.75 W
Reverse recovery time	17 ns
Forward Current	5 A
Max Forward Surge Current (Ifsm)	160 A
Maximum Forward Voltage (Max)	560 mV
Forward Current (Max)	7000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
Junction Temperature	175℃ (Max)
Power Dissipation (Max)	3750 mW
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
