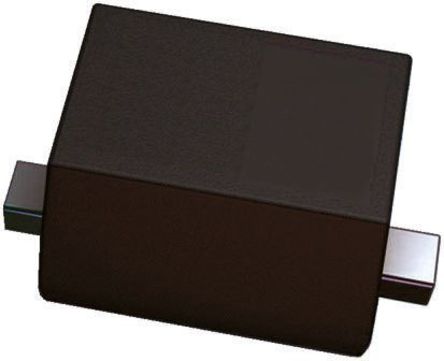

PMEG2005EB - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC79581640
Category:
Schottky Diode
Package:
SOD-523
Datasheet:
Datasheet 3D Model
Description:
NXP PMEG2005EB Small Signal Schottky Diode, Single, 20V, 500mA, 480mV, 6A, 125℃
Stock Locations:
Availability:
859 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.14

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PMEG2005EB is a planar maximum efficiency general application (MEGA) Schottky Barrier Diode encapsulated in a SOD523 (SC-79) ultra small surface-mounted device (SMD) plastic package. It is used for ultra high-speed switching, voltage clamping, protection circuits, low current rectification, low power consumption handheld devices applications (e.g. handheld devices).
Very low forward voltage
Guard ring protected
AEC-Q101 qualified

Show

PMEG2005EB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523
Number of Positions	2 Position
Forward Voltage	480 mV
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	6 A
Maximum Forward Voltage (Max)	480 mV
Forward Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	1.25 mm
Size-Width	0.85 mm
Size-Height	0.65 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
