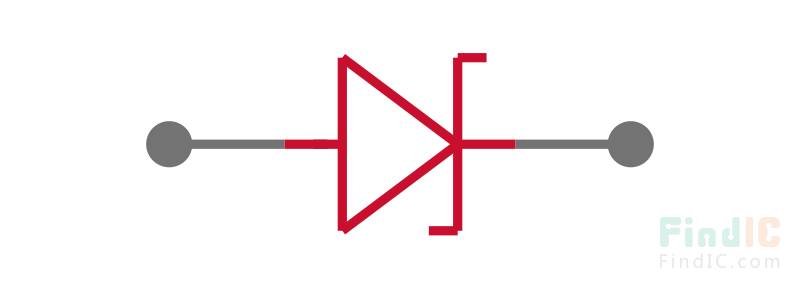

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

PMEG4002EL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-882
Max Forward Surge Current (Ifsm)	3 A
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	1.02 mm
Size-Width	0.62 mm
Size-Height	0.47 mm
Product Lifecycle Status	Active
RoHS
