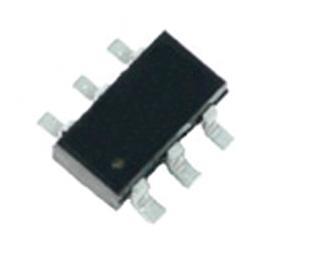

PMEG6010AED - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC293863414
Category:
Schottky Diode
Package:
SOT-457
Datasheet:
Datasheet 3D Model
Description:
NXP PMEG6010AED Small Signal Schottky Diode, Single, 60V, 1A, 650mV, 17.5A, 150℃
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PMEG6010AED is a planar maximum efficiency general application (MEGA) Schottky Barrier Diode encapsulated in a SOT457 (SC-74) small surface-mounted device (SMD) plastic package. It is used for low power switched-mode power supplies, rectification and polarity protection.
Low switching losses
Very high surge current absorption capability
Fast recovery time
Guard ring protected

Show

PMEG6010AED Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	6 Pin
Case/Package	SOT-457
Number of Positions	6 Position
Forward Voltage	650 mV
Forward Current	1 A
Max Forward Surge Current (Ifsm)	17.5 A
Maximum Forward Voltage (Max)	650 mV
Operating Temperature (Max)	150 ℃
Junction Temperature (Max)	150 ℃
	Show
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
