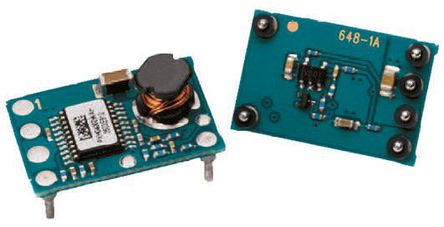

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTH04000WAH is a 10.8W through hole-mount non-isolated Adjustable Switching Regulator with Auto-Track™ sequencing. The PTH04000W is a highly integrated switching regulator module that delivers up to 3A of output current. Occupying a small PCB area, the PTH04000W provides output current at a high efficiency and with minimal power dissipation, thereby eliminating the need for a heat sink. The input voltage range of the PTH04000W is from 3 to 5.5V, allowing operation from either a 3.3 or 5V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH04000W can step down to voltages as low as 0.9V from a 5V input bus, with typically less than 1W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 to 3.6V, using a single external resistor. This feature simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other or any external voltage, during power up and down.
ON/OFF inhibit
Under-voltage lockout (UVLO)
Output overcurrent protection (non-latching, auto-reset)
Over-temperature protection
Point-of-Load Alliance (POLA)™ compatible
94% Efficiency

Show

PTH04000WAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Frequency	700 kHz
Supply Voltage (DC)	5.00 V
Power Rating	10 W
Number of Outputs	1 Output
Input Voltage (DC)	3.00V ~ 5.50V
Output Voltage	0.9V ~ 3.6V
Output Current	3 A
Number of Regulated Outputs	1 Output
Topology	Buck
Input Voltage (Max)	5.5 V
Input Voltage (Min)	3 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	3 v
Output Voltage (Max)	3.6 V
Output Voltage (Min)	900 mV
Output Current (Max)	3 A
Input Power (Max)	10.8 W
Input Power (Max)	10.8 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	3.3V ~ 5V
	Show
Size-Length	18.92 mm
Size-Width	12.57 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
