Description

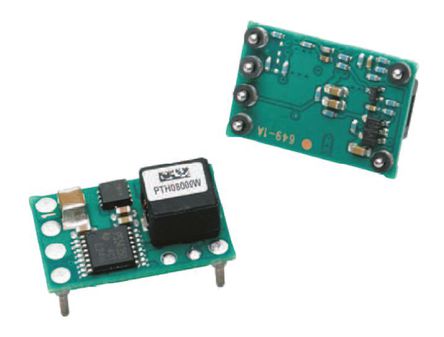

The PTH08000WAH is a 12.37W through hole-mount non-isolated adjust Module with Auto-Track™. The PTH08000W is a highly integrated switching regulator module that delivers up to 2.25A of output current. The PTH08000W sources output current at a much higher efficiency than a TO-220 linear regulator IC, eliminating the need for a heat sink. The input voltage range of the PTH08000W is 4.5 to 14V, allowing operation from either a 5 or 12V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08000W can step down to voltages as low as 0.9V from a 5V input bus, with less than 1W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 to 5.5V, using a single external resistor. This feature simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other or any external voltage, during power up and power down.
ON/OFF inhibit
Under-voltage lockout (UVLO)
Output overcurrent protection (non-latching, auto-reset)
Over-temperature protection
94% Efficiency

Show

PTH08000WAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Frequency	300 kHz
Power Rating	12 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 14.0V
Output Voltage	0.9V ~ 5.5V
Output Current	2.25 A
Number of Regulated Outputs	1 Output
Topology	Buck
Input Voltage (Max)	14 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	14 V
Input Voltage (DC Min)	4.5 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	900 mV
Output Current (Max)	2.25 A
Input Power (Max)	12.37 W
Input Power (Max)	12.4 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 14V
	Show
Size-Length	18.92 mm
Size-Width	12.57 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
