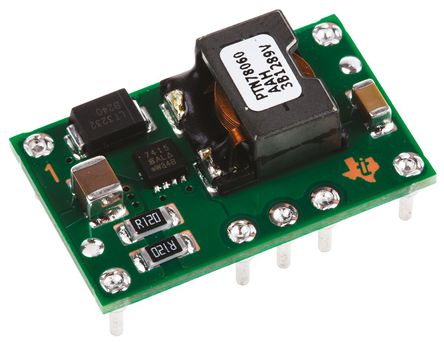

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTN78060AAH is a 15W Non-isolated Adjustable Positive-to-Negative Voltage Regulator Module with wide output voltage and wide input voltage range. It is smaller and lighter than its predecessors and has either similar or improved electrical performance characteristics. This provides high efficiency and output voltage is set using a single external resistor. This module is suited to a wide variety of general-purpose applications.
High efficiency up to 88%
Under-voltage lockout (UVLO)
Output current limit
Over-temperature shutdown
-40 to +85°C Operating temperature range

Show

PTN78060AAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-7
Supply Voltage (DC)	20.0 V
Power Rating	15 W
Number of Outputs	1 Output
Input Voltage (DC)	9.00V ~ 29.0V
Output Voltage	-15.0 V, -15.0 V (min)
Output Current	3 A
Number of Regulated Outputs	1 Output
Output Power	15 W
Switching Frequency	440kHz ~ 660kHz
Topology	Buck, Boost
Input Voltage (Max)	28.7 V
Input Voltage (Min)	9 V
Input Voltage (DC Max)	28.7 V
Input Voltage (DC Min)	9 v
Output Current (Max)	3 A
Input Power (Max)	15 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	9V ~ 29V
	Show
Size-Length	25.27 mm
Size-Width	15.75 mm
Size-Height	9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
