Description

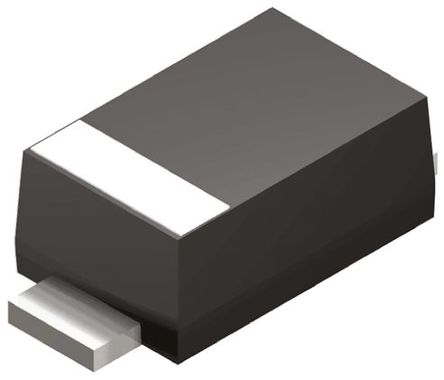

The PTVS5V0S1UR is an unidirectional Transient Voltage Suppressor (TVS) Diode, designed for transient overvoltage protection. This TVS diode saves board space while guaranteeing industry-leading surge protection up to 600W.
50A Non-repetitive peak forward current
ESD sensitive device, take proper precaution while handling the device.

Show

PTVS5V0S1UR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	400 W
Clamping Voltage	9.2 V
Max Repetitive Reverse Voltage (Vrrm)	5V
Test Current	1 mA
Max Breakdown Voltage	7 V
Peak Pulse Power	400 W
Min Breakdown Voltage	6.4 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	1.9 mm
Size-Width	2.8 mm
Size-Height	1.1 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
