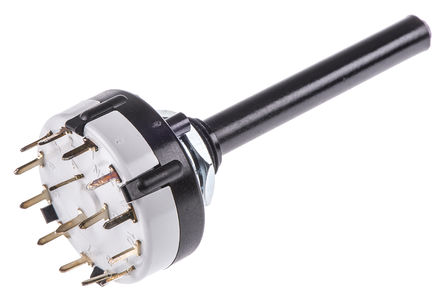

Image is for your reference only,please check specifications for details

CK1051 - Lorlin
Manufacturer:
Lorlin
ManyChip's Part#:
MC14147234
Category:
Rotary Switch, Switch Rotary, Coded Rotary Switch
Datasheet:
Datasheet 3D Model
Description:
LORLIN CK1051 Rotary Switch, 4Position, Non Illuminated, 30°, 150mA, 150mA
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CK1051 is a three-pole 4-position Rotary Switch with printed circuit terminal, non-shorting (break before make) contact and 30° standard indexing. It has silver plated brass contact/terminal and glass filled polyamide 6.6 moulding. It has adjustable stop to restrict number of positions.
Single wafer switch
Moulded 27.5mm diameter

Show

CK1051 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Contacts	3 Contact
Contact Plating	Silver
Flammability Rating	UL 94 V-0
Number of Bits	3 Bit
Contact Resistance	10.0 mΩ
Contact Current Rating	150mA @250VAC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	250VAC, 250VDC
	Show
Size-Width	27.5 mm
Size-Height	68.1 mm
Contact Material	Brass
Operating Temperature	-30℃ ~ 85℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
