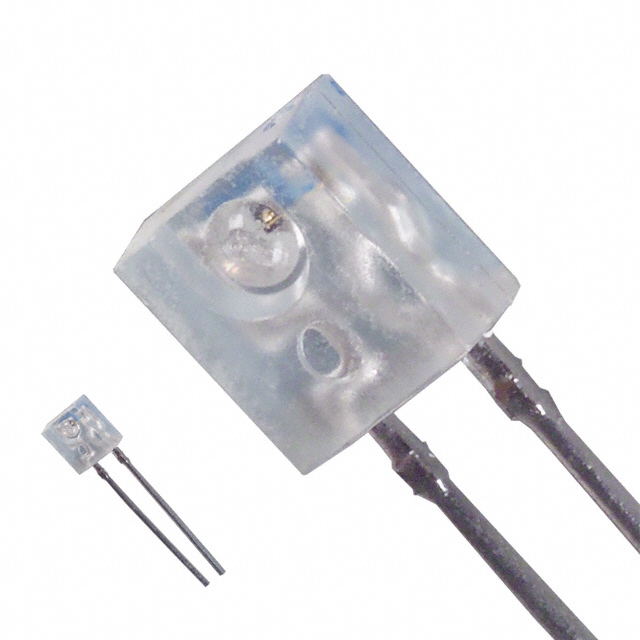

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The QEE113 is a 940nm GaAs Infrared LED is suitable for QSE113 photosensor. It has 50° medium wide emission angle and grey stripe on the top side. Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.
GaAs chip material
High output power

Show

QEE113 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Side Looker
Supply Voltage (DC)	1.50 V
Operating Voltage	1.5 V
Power Rating	100 mW
Forward Voltage	1.5 V
Wavelength	940 nm
Viewing Angle	50°
Peak Wavelength	945 nm
Power Dissipation	100 W
Rise Time	800 ns
Test Current	100 mA
Forward Current	100 mA
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	50 mA
Fall Time	800 ns
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	4.44 mm
Size-Height	5.08 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
