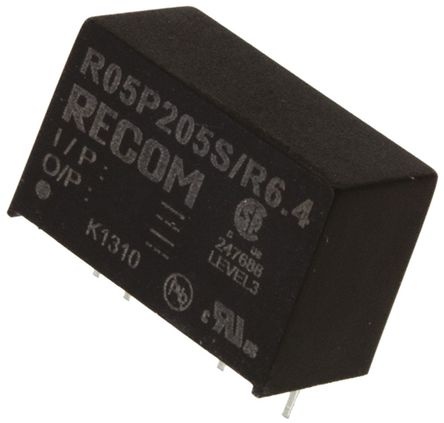

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RxxP2xxS_D Series of DC/DC Converters are fully certified to EN 60950/ UL-60950-1 and CSA C22.2. This makes them ideal for all telecom and safety applications when approved isolation is required.
* EN 60950 Certified, Rated for 250 VDC
* UL 60950-1/CSA C22.2 Certified
* 5.2 kVDC for 1 Minute
* Twin Chamber Transformer System
* UL94V-0 Package Material
* Efficiency to 80%

Show

R05P205S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-7
Power Rating	2 W
Number of Outputs	1 Output
Input Voltage (DC)	5.00 V
Output Voltage	5 VDC
Output Current	0.4 A
Output Power	2 W
Isolation Voltage	6.4 kV
Switching Frequency	85 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	4.5 v
Output Current (Max)	400 mA
Input Power (Max)	2 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	5 VDC
	Show
Size-Length	19.5 mm
Size-Width	9.8 mm
Size-Height	12.5 mm
Weight	4.3 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
