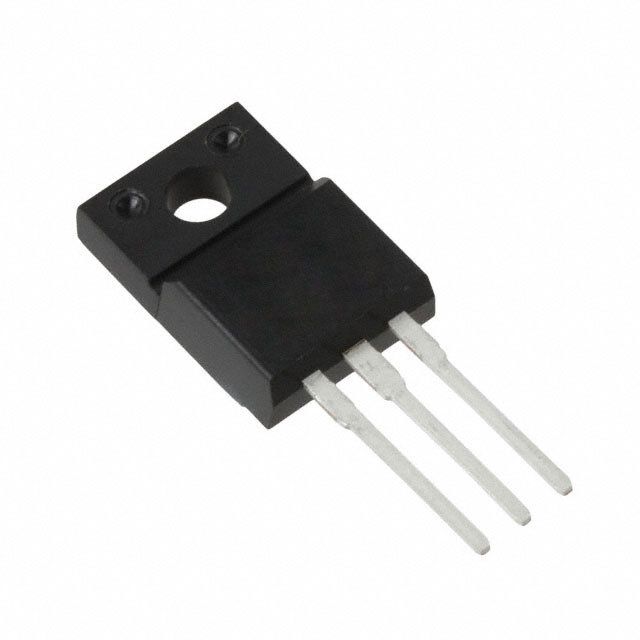

R5009FNX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	0.65 Ω
Polarity	N
Power Dissipation	50W (Tc)
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	9A
Rise Time	20 ns
Input Capacitance (Ciss)	630pF @25V(Vds)
Fall Time	40 ns
Power Dissipation (Max)	50W (Tc)
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not For New Designs
Packaging	Bulk
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
