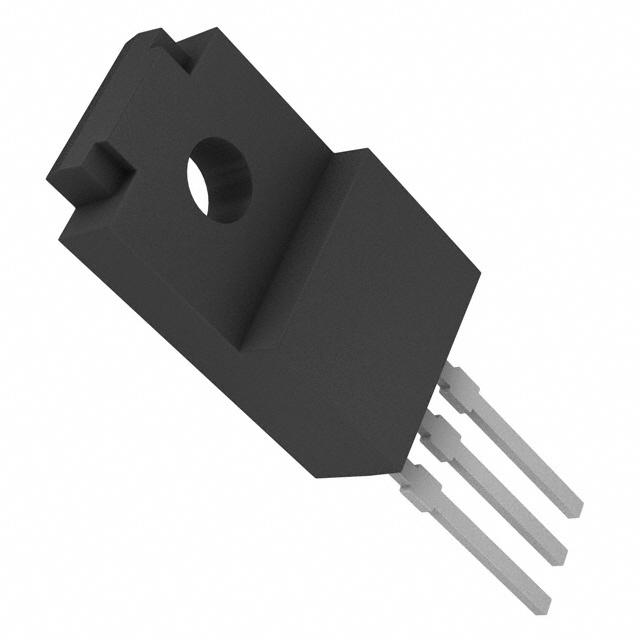

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

R6020FNX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.19 Ω
Polarity	N-Channel
Power Dissipation	50 W
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	20A
Rise Time	70 ns
Input Capacitance (Ciss)	2040pF @25V(Vds)
Fall Time	40 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	50W (Tc)
	Show
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
