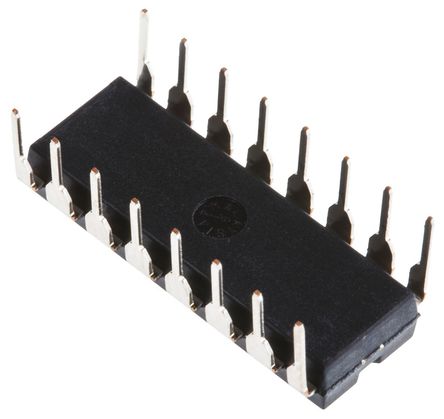

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RCV420JP is a 4 to 20mA precision Current Loop Receiver designed to convert a input signal into a output signal. As a monolithic circuit, it offers high reliability at low cost. The circuit consists of a premium grade operational amplifier, an on-chip precision resistor network and a precision 10V reference. The RCV420 features 0.1% overall conversion accuracy, 86dB CMR and ±40V common-mode input range. The circuit introduces only a 1.5V drop at full scale, which is useful in loops containing extra instrument burdens or in intrinsically safe applications where transmitter compliance voltage is at a premium. The 10V reference provides a precise 10V output with a typical drift of 5ppm/°C.
Internal sense resistors
Built-in level-shifting
86dB CMR High noise immunity
Green product and no Sb/Br

Show

RCV420JP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Frequency	150 kHz
Supply Voltage (DC)	11.4V (min)
Output Current	10 mA
Supply Current	3 mA
Number of Circuits	1 Circuit
Number of Positions	16 Position
Common Mode Rejection Ratio	86 dB
Quiescent Current	3.00 mA
Bandwidth	150 kHz
Slew Rate	1.50 V/μs
Gain Bandwidth Product	150 kHz
Input Offset Voltage	1 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	150 kHz
Accuracy	0.1 %
Supply Voltage	5.18 VDC
Supply Voltage (Max)	18 V
Supply Voltage (Min)	11.4 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
