The REF102 is a precision 10V voltage reference. The drift is laser-trimmed to 2.5ppm/°C max C-grade over the industrial temperature range. The REF102 achieves its precision without a heater. This results in low power, fast warm-up, excellent stability, and low noise. The output voltage is extremely insensitive to both line and load variations and can be externally adjusted with minimal effect on drift and stability. Single supply operation from 11.4V to 36V and excellent overall specifications make the REF102 an ideal choice for demanding instrumentation and system reference applications.

Show

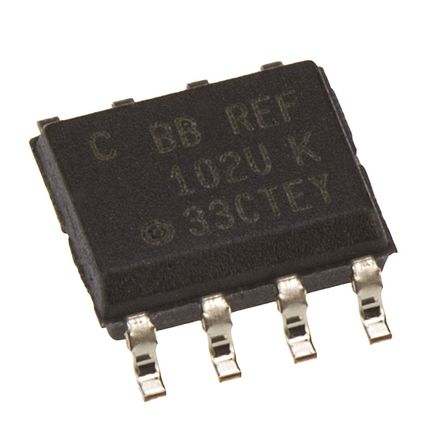

REF102CU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Capacitance Tolerance	±0.025 %
Input Voltage (DC)	11.4V ~ 36.0V
Output Voltage	10 V
Output Current	10 mA
Supply Current	1.4 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	1.40 mA
Input Voltage (Max)	40 V
Input Voltage (Min)	11.4 V
Output Voltage (Max)	10.003 V
Output Voltage (Min)	10 V
Output Current (Max)	10 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Accuracy	±0.025 %
Input Voltage	11.4V ~ 36V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-25℃ ~ 85℃
Temperature Coefficient	±2.5 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
