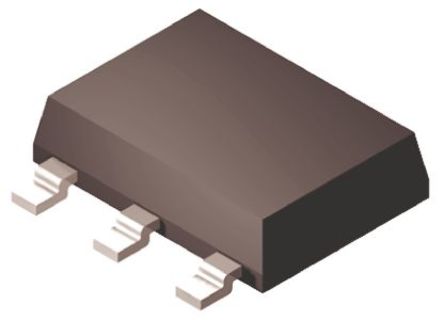

Image is for your reference only,please check specifications for details

REG1117A - TI
Manufacturer:
TI
ManyChip's Part#:
MC9570214
Category:
Voltage Regulator
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 1A, Adj.(1.25 to 13.5V), Internal Current limit, Thermal Overload Protection LDO Regulator Pos 1.25V to 13.5V 1A 4Pin (3+Tab) SOT-223 Rail
Stock Locations:
Availability:
204 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The REG1117 is a family of easy-to-use three-terminal voltage regulators. The family includes a variety of fixed-and adjustable-voltage versions, two currents (800mA and 1A) and two package types (SOT-223 and DDPAK). See the chart below for available options.
Output voltage of the adjustable versions is set with two external resistors. The REG1117 low dropout voltage allows its use with as little as 1V input-output voltage differential.
Laser trimming assures excellent output voltage accuracy without adjustment. An NPN output stage allows output stage drive to contribute to the load current for maximum efficiency.
FIXED AND ADJUSTABLE VERSIONS
2.85V MODEL FOR SCSI-2 ACTIVE TERMINATION
OUTPUT CURRENT:
REG1117: 800mA max
REG1117A: 1A max
OUTPUT TOLERANCE: ±1% max
DROPOUT VOLTAGE:
REG1117: 1.2V max at IO = 800mA
REG1117A: 1.3V max at IO = 1A
INTERNAL CURRENT LIMIT
THERMAL OVERLOAD PROTECTION
SOT-223 AND DDPAK SURFACE-MOUNT PACKAGES
APPLICATIONS
SCSI-2 ACTIVE TERMINATION
HAND-HELD DATA COLLECTION DEVICES
HIGH EFFICIENCY LINEAR REGULATORS
BATTERY POWERED INSTRUMENTATION
BATTERY MANAGEMENT CIRCUITS FOR NOTEBOOK AND PALMTOP PCs
CORE VOLTAGE SUPPLY: FPGA, PLD, DSP, CPU
All trademarks are the property of their respective owners.

Show

REG1117A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Current Rating	1.00 A
Number of Outputs	1 Output
Input Voltage (DC)	15.0V (max)
Output Voltage	1.25V ~ 13.5V
Output Current	1 A
Supply Current	10 mA
Number of Positions	3 Position
Quiescent Current	4 mA
Output Capacitor Type	Tantalum
voltage rating	1.2 V
Number of Regulated Outputs	1 Output
Input Bias Current	4.00 mA
Input Voltage (Max)	15 V
Input Voltage (Min)	3.8 V
Output Voltage (Max)	13.5 V
Output Voltage (Min)	1.5 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	3.8V ~ 15V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
